New sub-compact tractor from John Deere

12.55am 1st September 2011 - New Products - This story was updated on Sunday, September 4th, 2011

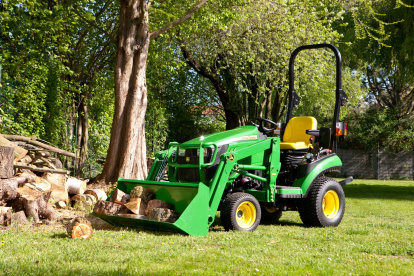

Designed and built by John Deere, the new 1026R sub-compact tractor provides best in class power, performance and versatility, while offering a number of standard features more commonly found on larger machines.

This is a completely new model from John Deere, fitting between the X700 Series lawn tractors and 2020 Series small-chassis compact tractor range, and is aimed at both residential and commercial customers who need to do more than just cut grass.

A wide range of attachments and implements, which can be changed quickly, easily and safely, make the 1026R suitable for many different customers, including councils, municipalities, private contractors, landscapers, large property owners, smallholders, equestrian centres and holiday parks.

The 1026R has a 26hp three-cylinder diesel engine (23.8hp rated at ECE R24), and a two-range hydrostatic transmission with Twin Touch pedals for ease of use and precise operation. Both four-wheel drive and power steering are standard, giving excellent manoeuvrability in all conditions. The tractor also has a wider track width of 1.2m for increased stability.

Additional comfort and simple operation are provided by the flat-floor, easy to access platform, standard cruise control and tiltable steering column, and a deluxe suspended seat. A high specification lighting package, a 12V outlet and a foldable Roll-Gard ROPS are also standard equipment.

The new 1026R can carry dozens of attachments and implements, including a quick attach front loader with a lift capacity of 380kg to full height, a mid-mounted AutoConnect side discharge rotary mower deck, rear mounted attachments on the standard Category I three-point linkage, and front mounted attachments such as a snow blade or rotary brush using the John Deere Quick Hitch system.

The durable 3.5 or 4.5mm thick mower deck is available with cutting widths of 1.37 or 1.52m (54 or 60in) respectively. Using John Deere’s exclusive AutoConnect technology, the operator simply drives over the top of the deck for automatic attachment to the tractor. The mower’s height of cut can also be adjusted easily from the tractor seat thanks to a conveniently located knob, and the deck can be raised and lowered using an independent system controlled by the standard front loader joystick.

The tractor’s three-point linkage with position control has a maximum lift capacity of 525kg at the link ends, or 309kg at 61cm (24in) behind the link arms. A Category 0 front hitch is also available, designed specifically for the European market, with ample lift capacity for large front-mounted implements.

An optional comfort cab features large doors, a spacious environment for the operator, a deluxe cloth seat and integrated work lights, offering excellent visibility at night. Overall height of the tractor with the cab fitted is under 2m (78in), which is useful for access to low buildings and when operating close to trees and other obstacles.

John Deere Limited
